HMI HAC – 12 Series – Inline Fresh Air Control Damper – 120 Vac
Quick Links
- HAC – 24Vac models
- HAC – Brochure
- HAC– Installation Instructions
- HAC– General Information Sheet
- Field change HAC – PO to PC
- HAC – Power Close w/ Relay
- Custom HAC – Example Pictures
- HAC – F – Flue Dampers
- HCR/HSI – Rectangular Dampers
- HCR – Economizer for A/C
This Inline motorized 120Vac Fresh Air Control Damper , Series HAC , fastens to an air duct in-line to control the flow of air, partially or completely, depending on its mechanical setting.
CSA International Certified. Satisfaction guaranteed.

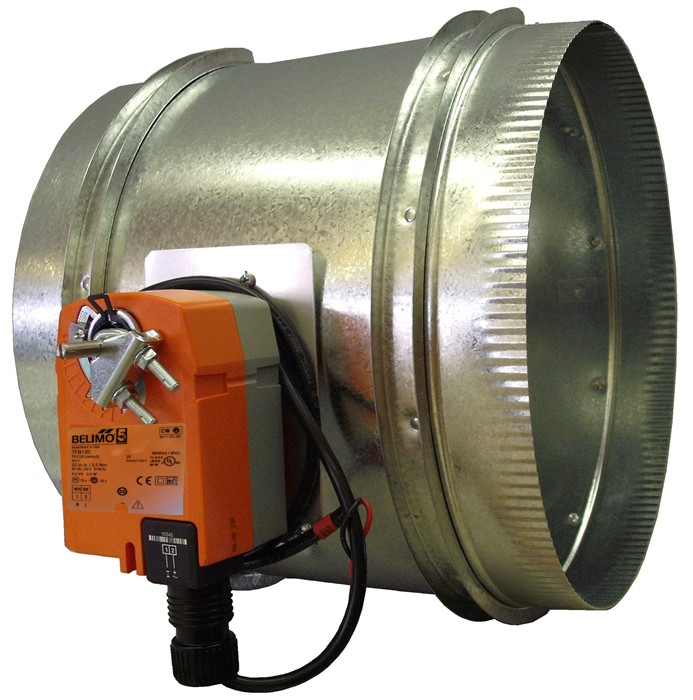

 HAC – 12 – One Motor |  HAC – Belimo Actuator – 120Vac |  HAC – 12 – H Fresh Air Damper for Heat – 120 Vac |  HAC – 12 – LT -Fresh Air Damper Insulated with Thermal Switch – 120 Vac |
| 4″ – 9″ in Diameter | 8″ – 20″ in Diameter | Motor and controls are mounted 1″ away from Damper body | Insulated with thermal switch mounted on Damper body |
| HAC-0x12-OP* HAC-0x12-SP* | Various Belimo 120Vac Actuator models may be ordered HAC – H – Larger sizes Over 20″ in diameter with Belimo Actuators. | HAC-0x12-OP*-H HAC-0x12-SP*-H | HAC-0x12-OPO-LT |
| x = Diameter in Inches *= P O – Power Open or P C – Power Closed Damper S P* = includes End Switch O P* = No End Switch HAC-0x1 2-OPO <- the ” 2” in this position indicates 120Vac |
General Damper Identification : i.e. HAC – 0612 – SPC – H (Special for heat)
| Series | Diameter (in) | Motors | 120Vac | End Switch | Power Open/Closed | Special for heat |
| HAC | 06 | 1 | 2 | S | PC | H |
Features Include:
- Easy to install in-line as part of Standard Air dDuct.
- Durable, patented HMI HOYME ‘Spring Motor Drive’ with Nylon Bearings.
- 26 ga. galv. steel from 4″Ø to 5″Ø.
- 24 ga. galv. steel from 6″Ø to 9″Ø
- 24 ga. galv. re-enforced steel from 10″Ø to 14″Ø
- 22 ga. galv. re-enforced steel from 16″Ø to 18″Ø
- Other sizes and weight of steel upon request.
- These Dampers can be used for the new ventilation code which requires a designated exhaust fan, a centrally located switch marked ‘VENTILATION‘ and a Fresh Air Intake Damper, all interconnected to the Furnace Circulation Fan.
- See HMI Hoyme ‘Interface Relay Adaptors‘ which have been specially designed for these Dampers and new ventilation codes.
Other options that may be added:
- Adding Insulated wrap at the factory
- Adding an End Switch
- HCR – Economizer for use with Air conditioner
- Mounting Collar is included but may be left off
- Interface Relay Adaptors permit connection to Line Voltage controls.
